WHAT IS PAINT SLUDGE ?

  • With the growth of industry the increase in demand of Paints and Coatings have increased manifolds.
  • Majority of these coatings are applied to the substrate by spray application, resulting in air loss of paint, to a tune of 35% to 60% . This air loss gets accumulated as paint sludge, when it gets in contact
    with the water of the spray booth.
  • In India alone the extent of this sludge collection is to the tune of 48000 tons/year according to the statistical data of the year 2008-09.
  • This number is rising sharply at a rate of 10-15% on an annual basis.
  • According to the Hazardous Waste Management Rules, paint sludge is classified as hazardous industrial
    waste and hence needs to be handled in a safe controlled manner. Coupled with other limitations like high transportation costs, lack of licensed transporters and adverse environmental and health impacts, disposal of paint sludge has evolved as a major concern in the auto industry.

METHODS OF DISPOSAL OF PAINT SLUDGE

LAND FILLING AT GOVT. APPROVED LAND FILL SITES

INCINERATION BY GOVT. APPROVED INCINERATORS

COPROCESSING IN CEMENT KILNS

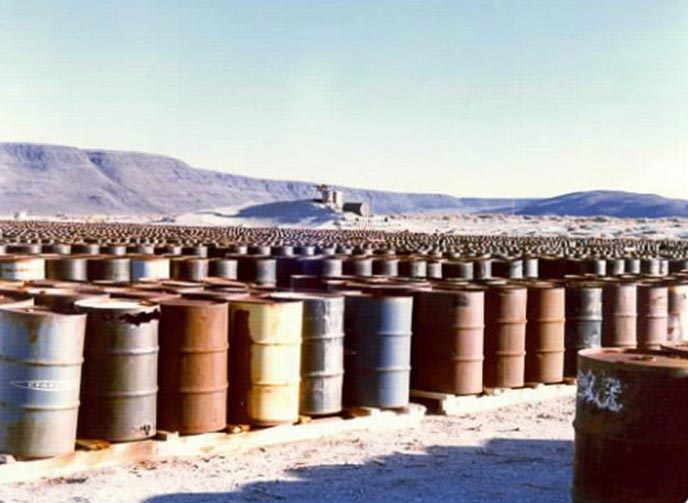

LAND FILLING AT GOVT. APPROVED LAND FILL SITES

LAND FILLS

The other way to dispose off the paint sludge i.e.. (Hazardous Waste) is the disposition of hazardous waste at government approved Hazardous disposal sites after due testings and treatments. Land availability is always limited and beyond

limit these sites would no longer be available. Also dumping hazardous waste under soil means poisoning our future with increasing the toxins of soil and water.

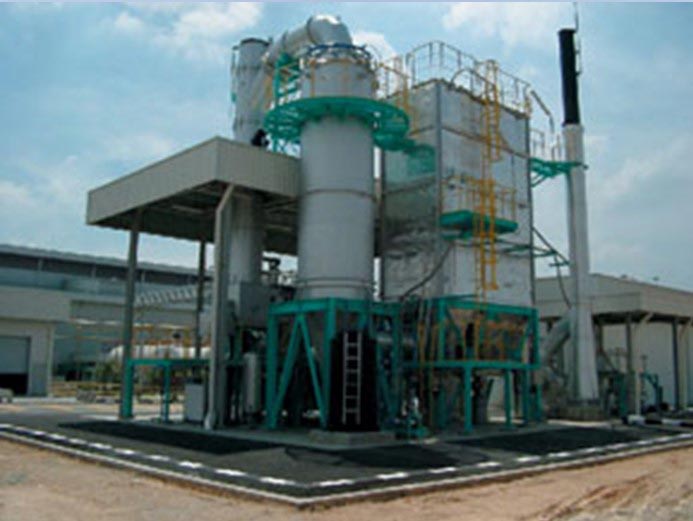

INCINERATION BY GOVT. APPROVED INCINERATORS

INCINERATION

Incineration is depletion of Natural resources as ONE TON OF PAINT SLUDGE REQUIRES 110 KGS OF FUEL (HSD) .This itself is not a neat remedy as it leaves behind 20-36% ash containing hazardous metallic oxides and also emits a lot of Carbonic gases leading to pollution .This ash produced again needs to be handled as Hazardous Waste.

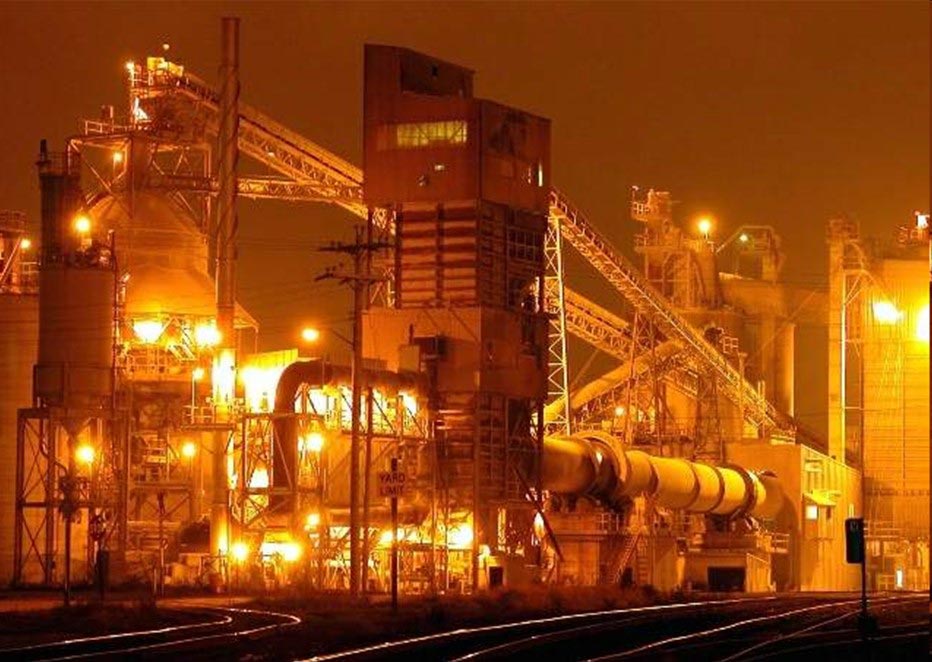

COPROCESSING IN CEMENT KILNS

CO – PROCESSING IN CEMENT KILNS

Co-processing of Hazardous waste in Cement Kilns means using hazardous waste as an alternate fuel . Throughout the world some 60 cement kilns have been modified so that various wastes can be burned along with conventional fuels. But cement kilns are designed to make cement and not to dispose of waste.

According to a study by the US Center for the Biology of Natural Systems, emissions of dioxins are eight times higher from cement kilns burning hazardous waste, than from those that do not burn it

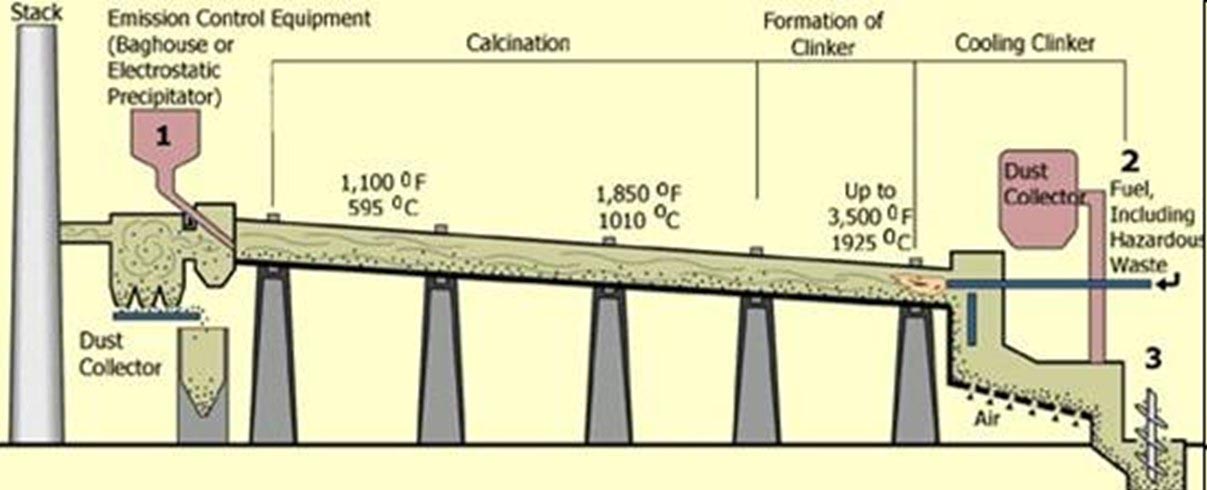

HOW IS CO-PROCESSING DONE

Co Processing is also a potential hazard for the environment. In timing for the heat in the Kiln, as well as the temperature, is not necessarily the same as the requirements for the best possible hazardous waste incineration. Therefore the operation for making cement leaves the process for hazardous waste incineration incomplete, and therefore more polluting. All bottom and fly ash and liquid scrubber waste from hazardous waste incinerators is a Hazardous waste under U.S. Hazardous waste laws (RCRA) , but cement kilns and light-weight aggregate kilns (LWAK) sell a “product” and so their ash is not regulated as a hazardous waste!

HAZARDS OF INCINERATION

Far from making waste disappear incinerators actually create more toxic waste, and through this pose a significant threat to public health and the environment. Incinerator ashes – contaminated with heavy metals, unburned chemicals and entirely new chemicals formed during the burning process – are buried in landfill or dumped in the environment. One of the most insidious aspects of incineration is the entirely new and highly toxic chemicals that can be formed during the combustion process.

Dioxins and furans (often referred to just as dioxins) – a class of chemical compounds widely recognised to contain many highly toxic compounds including TCDD, a chemical which has been described as the most toxic chemical known to man.

Dioxins are created when chlorine-containing materials are burned. They have no useful purpose and are associated with a wide range of health impacts including, cancer, altered sexual development, male and female reproductive problems, suppression of the immune system, diabetes, organ toxicity and a wide range of effects on hormones.

DRIVE AGAINST INCINERATION

STATURATORY RULES ABOUT PAINT SLUDGE

INDIAN LAW

THE PAINT SLUDGE IS CLASSIFIED AS HAZARDOUS INDUSTRIAL WASTE UNDER THE HAZARDOUS WASTE RULES, 1989 AS AMENDED UP TO MAY 2003 (SECTION –21.1). AND UNDER THE ORDERS PROMULGATED BY HONOURABLE SUPREME COURT OF INDIA, IN SLP (C) NO. 16175 / 1997 AND C.A. NO. 7660 / 1997, ITS REMOVAL OUT OF THE PREMISES OF INDUSTRIAL UNIT PRODUCING IT IS PROHIBITED, THIS CAN ONLY BE TRANSPORTED TO A GOVT. APPROVED DISPOSAL SITE – THROUGH A GOVT. LICENCED TRANSPORTER – WITH DUE PERMISSION FROM STATE P.C.B.

INTERNATIONAL LAW

Basel Convention – Rules for Trans boundary movement of Hazardous waste

Ship – Khian Sea, carrying incinerator ash from Philadelphia dumped 50% of its load into the sea of Haiti and was forced away wherein it sailed for many months changing its name several times. Unable to unload, the crew dumped much of the load into sea.

1988 8000 barrels of hazardous waste from Italy shipped into Nigeria in exchange of $100 per month as rent given to the farmer.

MEMBER COUNTRIES OF BASEL CONVENTION

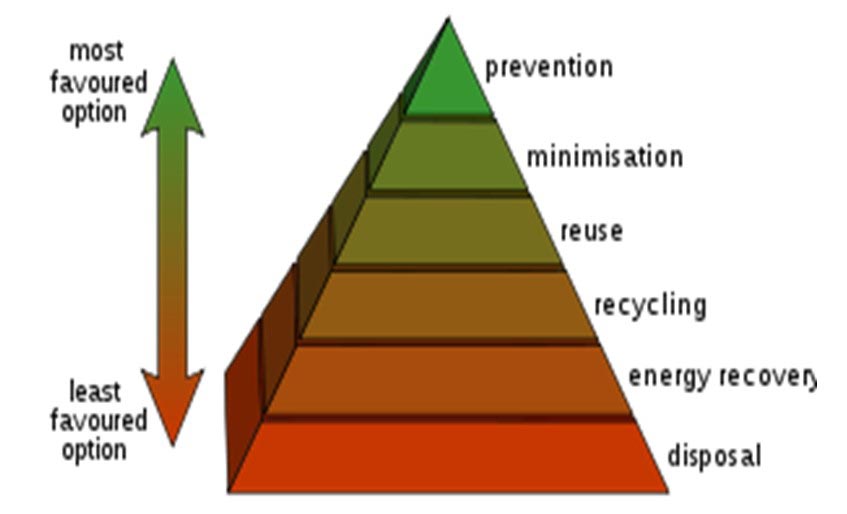

Basel Convention – Waste Disposal Hierarchy

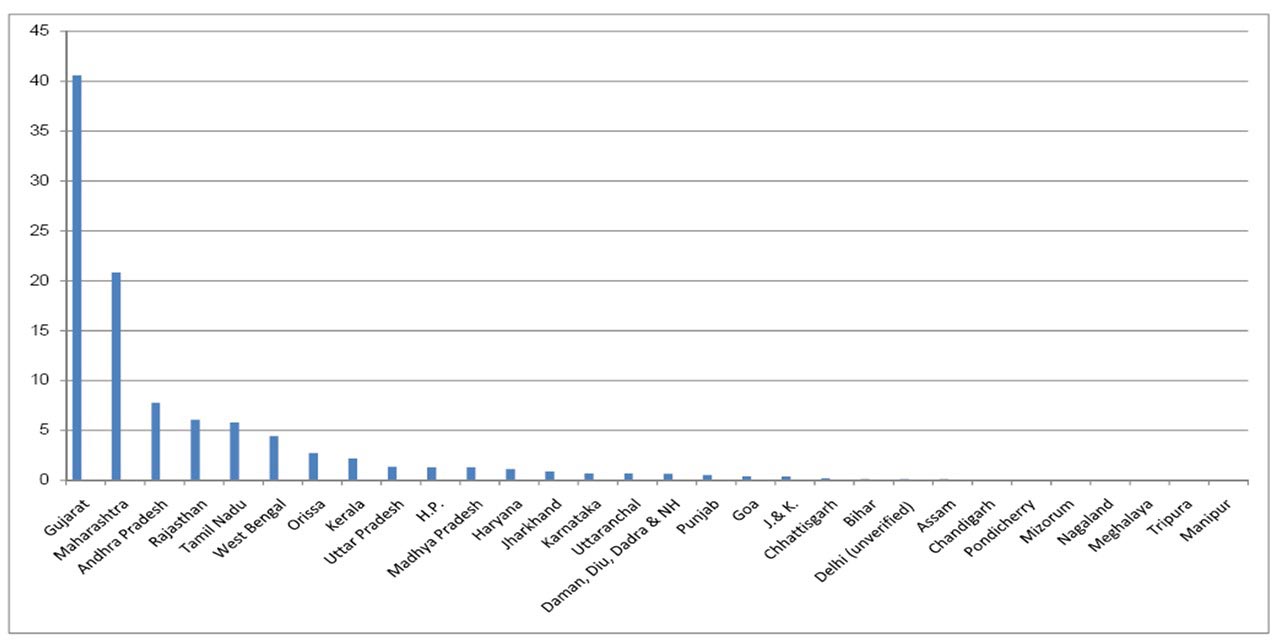

Relative Contribution by Different States/UT towards Land Disposal HW Generation (2008)

Relative Contribution by Different States/UT towards Incinerable HW Generation (2008)

RECYCLE & REUSE

INNOVATIONS BEYOND

VISION STATEMENT

Develop and Establish Processes that will

  • Help recycle Industrial Paint Waste – Sludge, Solvents, Phosphating sludge, powder coatings wastes into usable Paint products without creating any new waste streams.
  • use more innovative methods to recycle and reuse wastes that will help save environment, virgin raw material and energy usage to achieve the above in a sustainable manner.

INNOVATIONS BEYOND

Basic Projects & Objectives

  • Environmentally friendly approach to paint sludge
  • Conversion of paint sludge into range of coatings
  • Cost savings on Incineration, Co-processing & Land filling
  • Lower cost of finished products as less amount of virgin raw material is used

RECYCLING TECHNOLOGY

Basic Projects & Objectives

  • We have developed a process to convert/recycle Paint Sludge into useable coatings.
  • The process is non cumbersome.
  • Converted Product would meet all the quality parameters of the regular finish products.
  • A range of products can be designed as per the customers requirement. This novel process recovers resin/binder, pigments and part solvents from the sludge.
  • Product cost for the industries will be reduced by ~10% – 15%
  • Will save on fuel used up in incineration, averts COx, NOx & SOx in addition to the toxic fumes of Furans & Dioxins released into atmosphere and saves ~35% virgin raw material used in the formulations.

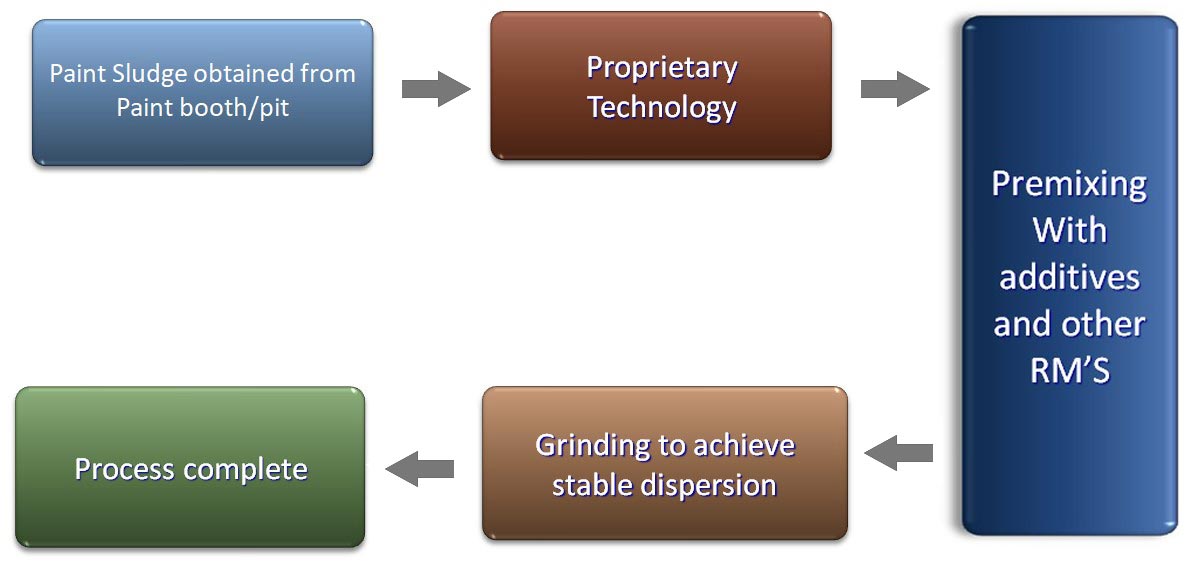

PROCESS FLOW CHART

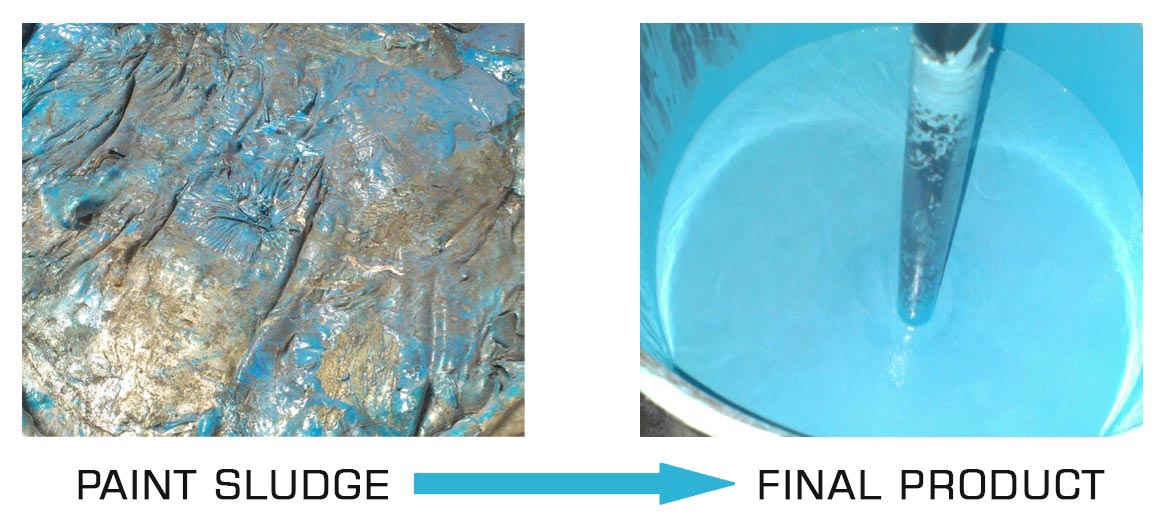

SLUDGE CONVERSION
